Inside Iron: Analyst Breaks Down Xpeng''s Ambitious 5-DoF Spine and New Scapula

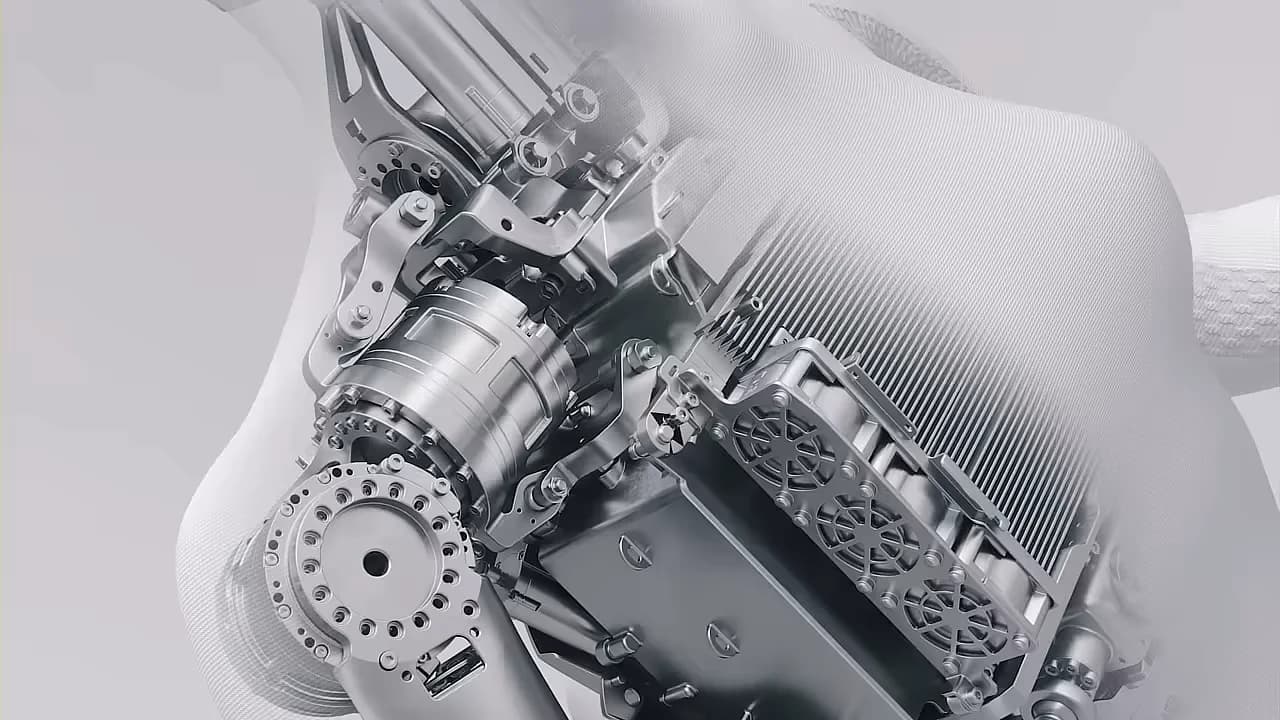

A CGI image of XPeng Iron — A CGI render from Xpeng's AI Day 2025 reveals the complex internal mechanics of the new-generation 'Iron' robot. Technical breakdowns of this new hardware are focusing on ambitious designs in the shoulder assembly and a multi-degree-of-freedom "human-like spine".

The dust has barely settled from Xpeng's controversial AI Day 2025, which sparked a "human-in-a-suit" debate, but the first in-depth technical breakdown is already here. In a new video analysis, robotics expert Scott Walter, alongside host Marwa ElDiwiny, dissected the components and design choices of the new-generation 'Iron' robot, revealing an "extremely complex" and wildly ambitious machine.

The analysis confirms what many, including Humanoids Daily, suspected: the robot that walked the stage was a hybrid, mixing a new body with older-generation hands. But the new components it did feature, particularly in the shoulders and waist, represent a significant—and potentially risky—leap in humanoid design.

The "Hybrid" Bot: Old Hands, New Body

While Xpeng quickly debunked the "human-in-a-suit" theories with follow-up footage showing the robot's mechanical skeleton, Walter's analysis confirms the on-stage model was not the complete "second generation" platform.

The most telling clue was the hands. "Those are the first-generation hands" , Walter noted, comparing the on-stage bot to the new, more lifelike hands shown in Xpeng's CGI renders. This aligns with an in-person inspection of the display models, which also featured the older hands.

"Hugs and Shrugs": A Functional Scapula

The most novel addition to the Iron bot is a complex shoulder mechanism that mimics a human scapula. Walter identifies this as adding two new degrees of freedom (DoF) to the shoulders, allowing for "hugs and shrugs".

This isn't just for adding emotion. Walter explains that the mechanism's true purpose is to extend the robot's functional reach. "It takes the center of rotation of your shoulder and puts it somewhere else" , he said, giving the robot the ability to stretch up or reach forward those extra few centimeters, just as a human does.

The design itself is asymmetrical, with the left and right mechanisms stacked differently to fit inside the torso. It's a feature, Walter notes, that "every roboticist" would love to add to their robot if they could.

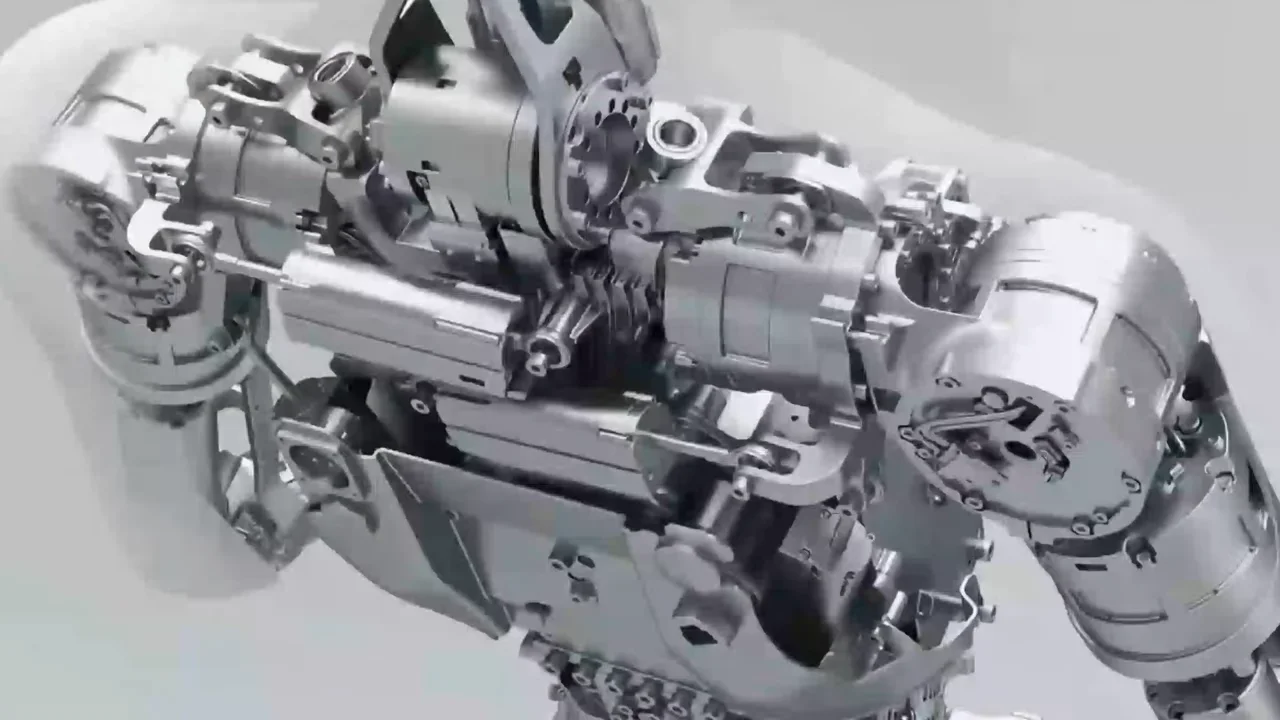

A CGI image of the shoulders of Xpeng Iron — Image detailing the 'Iron' robot's complex shoulders. Analysts identify this as a new 2-degree-of-freedom scapula mechanism, designed to add "hugs and shrugs" and extend the robot's functional reach.

A "Crazy" Five-DoF Spine

The complexity continues at the robot's core. Where most humanoids feature a single-axis (Z-rotation) waist , and the original Iron had a three-DoF "kidney waist" , Walter's analysis points to the new version having a five-degree-of-freedom (5-DoF) waist.

Xpeng refers to this as a "human-like spine" , and Walter breaks it down as a "ZY XYZ" configuration. This system ditches the original's rotary actuators for what appear to be "beefier" and "more reliable" linear actuators arranged in a parallel mechanism.

However, Walter points out that this type of complex waist has been a notorious weak point for other robots. "Everyone that's tried using this waist has been having problems with it," he said, citing Boston Dynamics and Figure as examples of companies that have struggled with or moved away from similar designs.

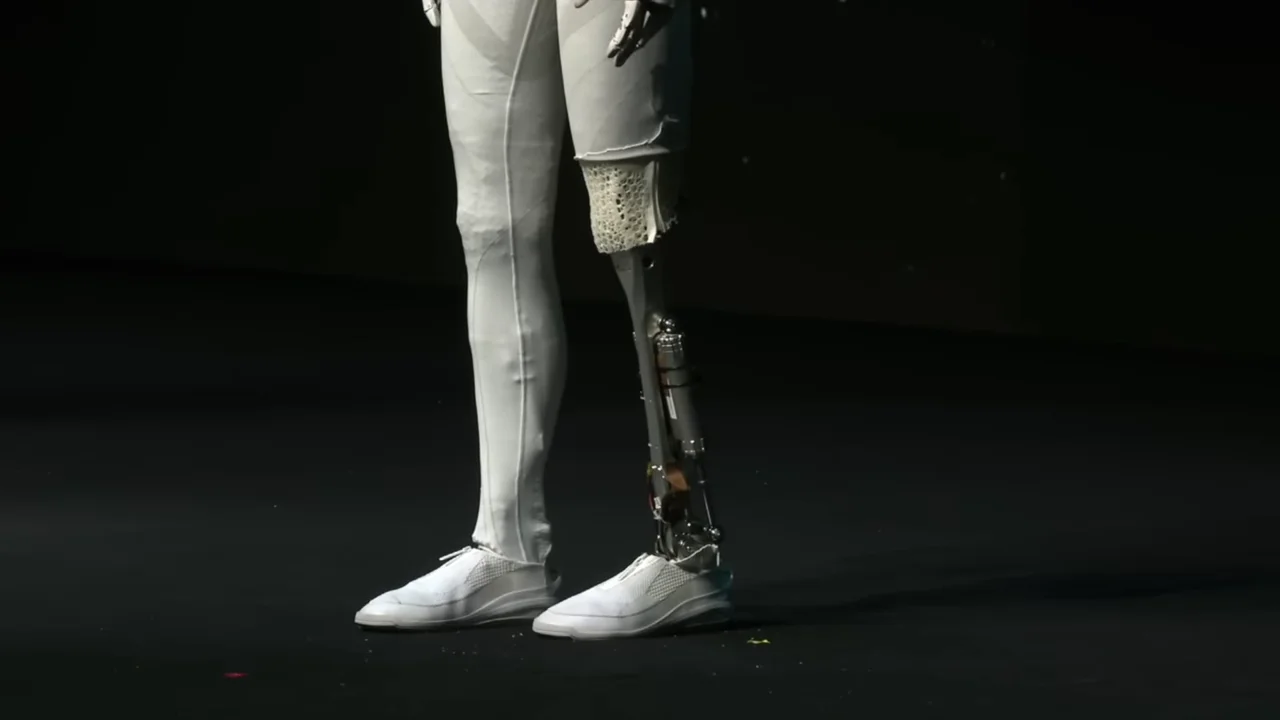

Image of Xpeng Iron with revealed robotic leg — To settle the "human-in-a-suit" debate, Xpeng staff cut away the robot's outer suit and "bionic muscle" fascia layer to reveal the mechanical skeleton underneath. This view helped analysts confirm a key design change: the knee actuator was relocated to the rear of the leg, creating a more convincing, human-like kneecap from the front.

Key Design Changes: Head, Hips, and Knees

Walter's deep dive uncovered several other significant hardware changes that explain the robot's human-like appearance:

4-DoF Head: The head appears to be a four-DoF system , more than the typical two or three. Walter suspects a "Z YXY" configuration using a parallel mechanism that allows the entire neck to lean forward, not just the chin to drop.
Tesla-Style Hips: Xpeng abandoned the "R-AF" (Rotation-Abduction-Flexion) parallel design of the original Iron's hip. The new bot uses an "A-R-F" (Abduction-Rotation-Flexion) serial configuration —the exact same joint order used by Tesla's Optimus.
Relocated Knee Actuator: The convincing kneecaps that baffled viewers are an illusion created by a clever design change. The original Iron's knee actuator was on top (the "quadricep"). The new version moves the actuator underneath , with the linkage jutting out the back (the "hamstring"). This leaves the front of the knee smooth and clear, hiding the mechanics.
"Bionic Muscle" as Fascia: The soft, human-like contour of the bot is achieved with a covering Xpeng calls "bionic muscle". Walter identifies this as a "fascia" layer—a compliant, 3D-printed lattice structure between the skeleton and the "skin." He argues this layer is key to smoothing out motion, damping vibrations, and absorbing impacts.

Ambitious Tech, Cautious Rollout

The analysis paints a picture of a robot packed with bleeding-edge, and arguably unproven, hardware. This makes Xpeng's announced commercialization plan all the more puzzling.

As detailed at AI Day, Xpeng is skipping factories and homes for now , after trials revealed the robot's hands "didn't last more than a month" doing simple factory tasks. Instead, the bot will be deployed in Xpeng's own retail showrooms as a "glorified salesman".

Xpeng has undeniably created one of the most mechanically human-like bots to date. But as Walter's analysis highlights, the gap between a robot that looks human-like and one that can perform reliable, useful work remains vast.

The full technical breakdown from Scott Walter and Marwa ElDiwiny can be viewed on YouTube and here below:
